Shimano Ultegra WH-R8170-C50-TL Disc Centerlock Road Wheels 28″/700C

The Ultegra WH-R8170-C50-TL Disc road wheels by SHIMANO offer an optimal balance of aerodynamics, stiffness, reliability and weight.

The 50 mm deep carbon rims, aerodynamically optimised bladed spokes and extremely efficient hubs give you plenty of propulsion and let you literally cut through the wind. Being tubeless-ready and having an inner rim width of 21 mm, the WH-R8170-C50-TL Disc wheelset by SHIMANO can handle the trend towards wider road bike tyres, while also providing low rolling resistance, increased comfort, and improved grip when riding tubeless. Double-butted spokes with a 1.6 mm thin centre section make for high lateral stiffness and vertical compliance.

Therefore, SHIMANO’s WH-R8170-C50-TL Disc road wheels are the perfect choice, if you want to compete for the win, set a new best time on your favourite route or just like to ride fast.

Details:
• Aerodynamically optimised wheels with 50mm carbon rims
• Set including front and rear wheel, for disc brakes
• Tubeless ready

Technical details:
• Intended use: Road bike
• Series: Ultegra
• Model: WH-R8170-C50-TL
• Rim material: carbon

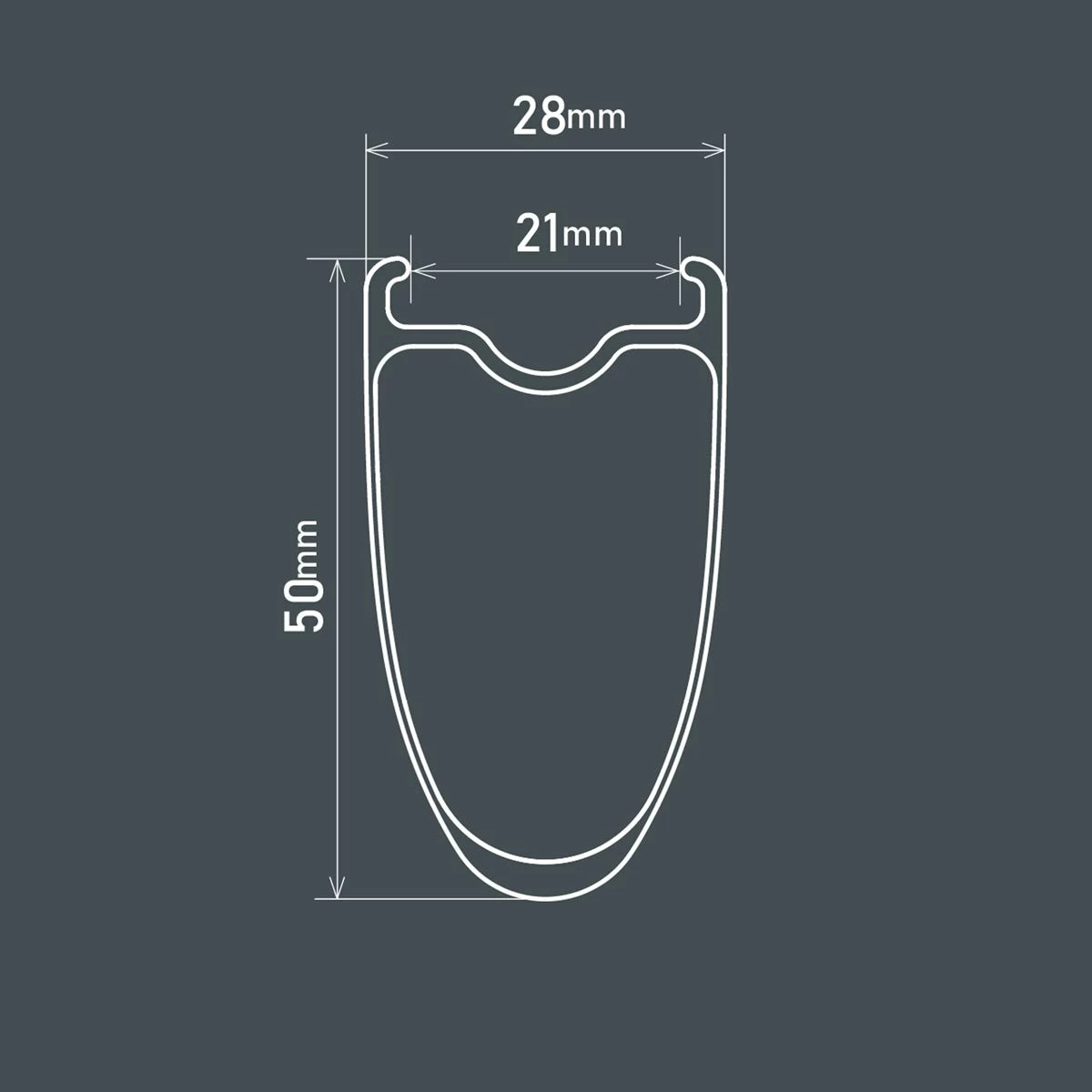

• Rim width/depth: 28 mm / 50 mm
• Inner rim width: 21 mm
• ETRTO: 21-622
• Recommended tyre width: 25 mm – 32 mm
• Spoke type: butted straight pull aero spokes (2.0 – 1.6 – 2.0)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: aluminium
• Hub body: aluminium (anodised)
• Axle: aluminium (anodised)
• Freehub body: SHIMANO HG Spline L (steel)
• Compatible with these cassettes: 8-/9-/10-speed SHIMANO /SRAM, 11-speed SHIMANO/SRAM Road, 11-speed SHIMANO MTB, 12-speed SHIMANO Road
• Brake disc mount: Center Lock
• Front axle: 12 x 100 mm (thru axle)
• Rear axle: 12 x 142 mm (thru axle)
• Weight: approx. 1570 g (front wheel approx. 698 g, rear wheel approx. 872 g)

In the box:
• 1 SHIMANO Ultegra WH-R8170-C50-TL-F road front wheel
• 1 SHIMANO Ultegra WH-R8170-C50-TL-R road rear wheel
