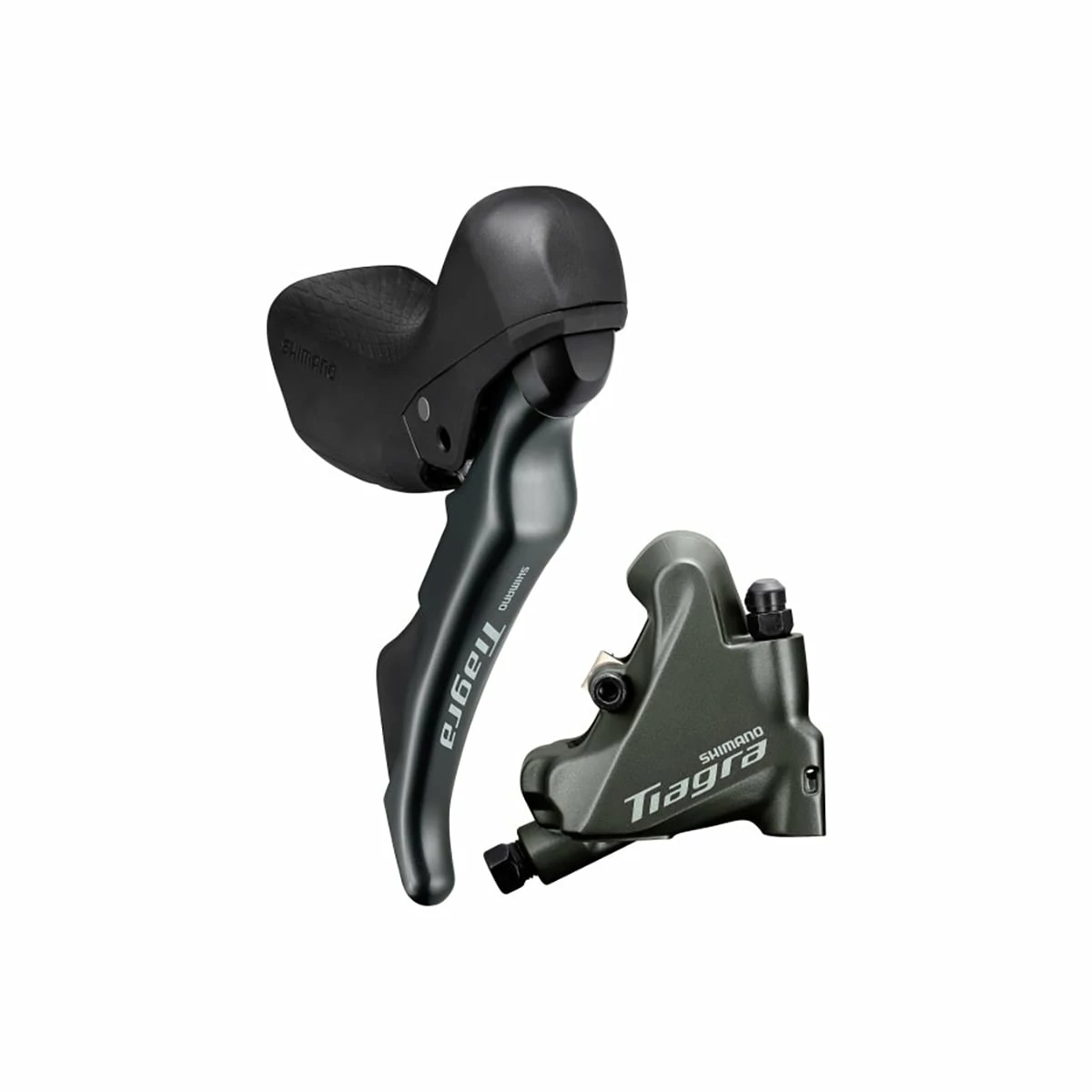

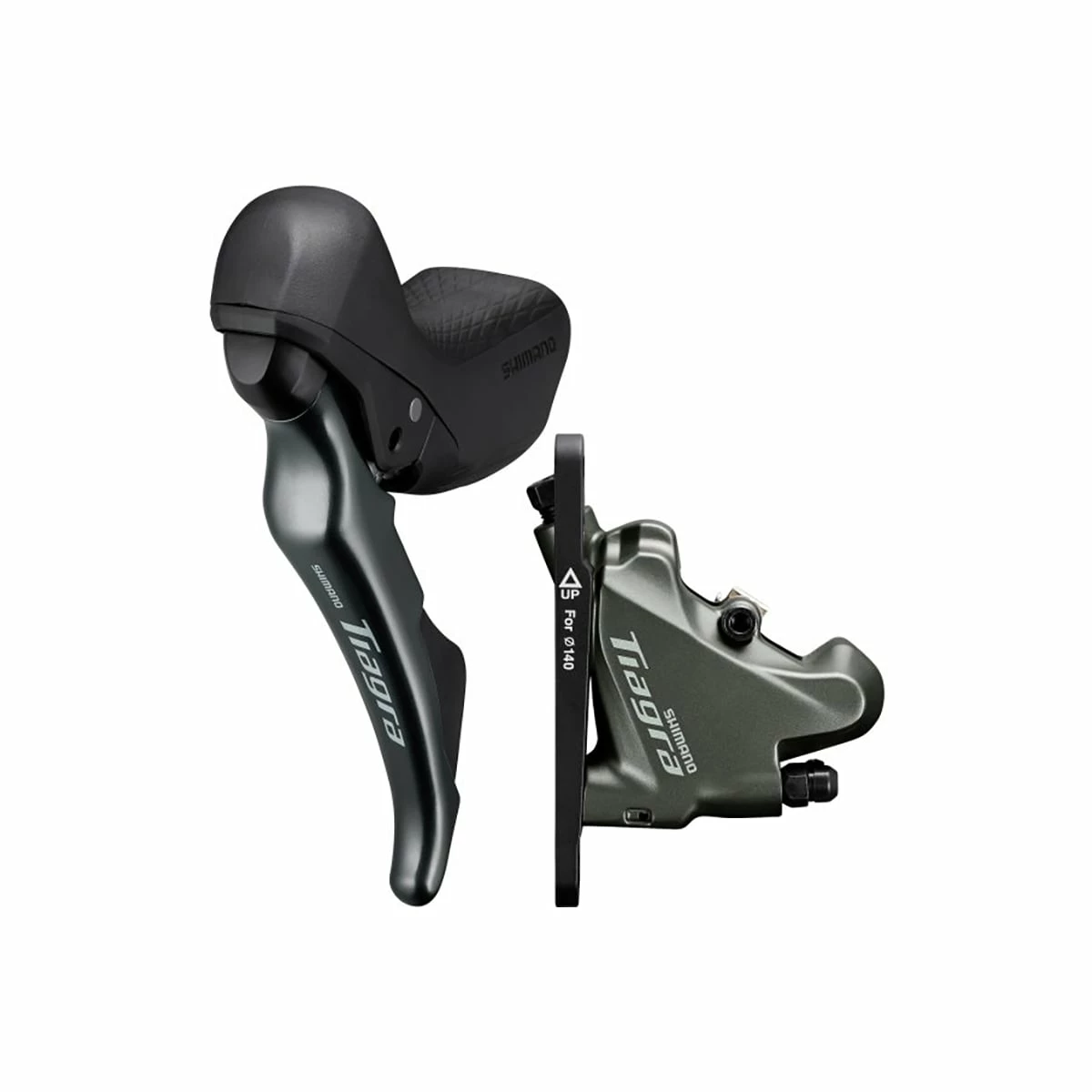

Shimano Tiagra ST-4720 Brake/Shift Lever Combination 2×10 Speed With BR-4770 Disc Brake Caliper (Front Or Rear)

The Tiagra 4720 2×10 speed STI shift/brake levers by SHIMANO offer ambitious entry-level performance while featuring many technologies of the top groups. In combination with Tiagra BR-4770 brake calipers, SHIMANO offers you a hydraulic disc brake combination with great braking performance and comfortable braking power modulation.

Details:
• DUAL CONTROL LEVER for hydraulic disc brakes
• Same shifting performance as many groupsets of higher quality
• Constantly high braking power, even in bad weather
• ONE WAY BLEEDING for quick and easy bleeding

Specs:
• Intended use: Road, Cyclocross
• Compatibility: 10-speed/double
• Material: aluminium, steel, composite
• Brake levers: ST-4720 (front wheel: left lever / rear wheel: right lever)
• Brake caliper: BR-4770 (Flatmount, 2-piston system (resin), flat design)
• Brake hose: SM-BH90
• Brake fluid: SHIMANO mineral oil
• Lever reach adjustment integrated (with tool)
• Hose length: 1000 mm (front wheel); 1700 mm (rear wheel)
• Brake pads: L03A Ice Tec (with cooling fins), organic
• Weight brake levers: approx. 620 g (pair)
• Weight brake caliper: approx. 149g (piece)

Note:
Due to group-specific requirements ONLY compatible with Tiagra components of model series 4700, 4703, 4720 and 4725.

In the box:

Either

• 1x SHIMANO Tiagra ST-4720 STI shift/brake lever (double, front wheel, left)
• 1x SHIMANO Tiagra BR-4770 Flatmount brake caliper (incl. 1 set of brake pads and adapter for 160mm disc rotor)
• 1x SHIMANO SM-BH90 brake hose (1000 mm)
• 1x SHIMANO Optislick gear cable

or

• 1x SHIMANO Tiagra ST-4720 STI shift/brake lever (10-speed, rear wheel, right)
• 1x SHIMANO Tiagra BR-4770 Flatmount brake caliper (incl. 1 set of brake pads and 25mm bolt)
• 1x SHIMANO SM-BH90 brake hose (1700 mm)
• 1x SHIMANO Optislick gear cable

Please make your choice. Both versions filled and bled ready for installation.

Tip:
For the recommended SHIMANO SM-RT64 SLX/LX Centerlock disc rotors see product code: 982108.
For the complete kit including left AND right brake/shift lever incl. brake calipers, please see product code: 2286492.
