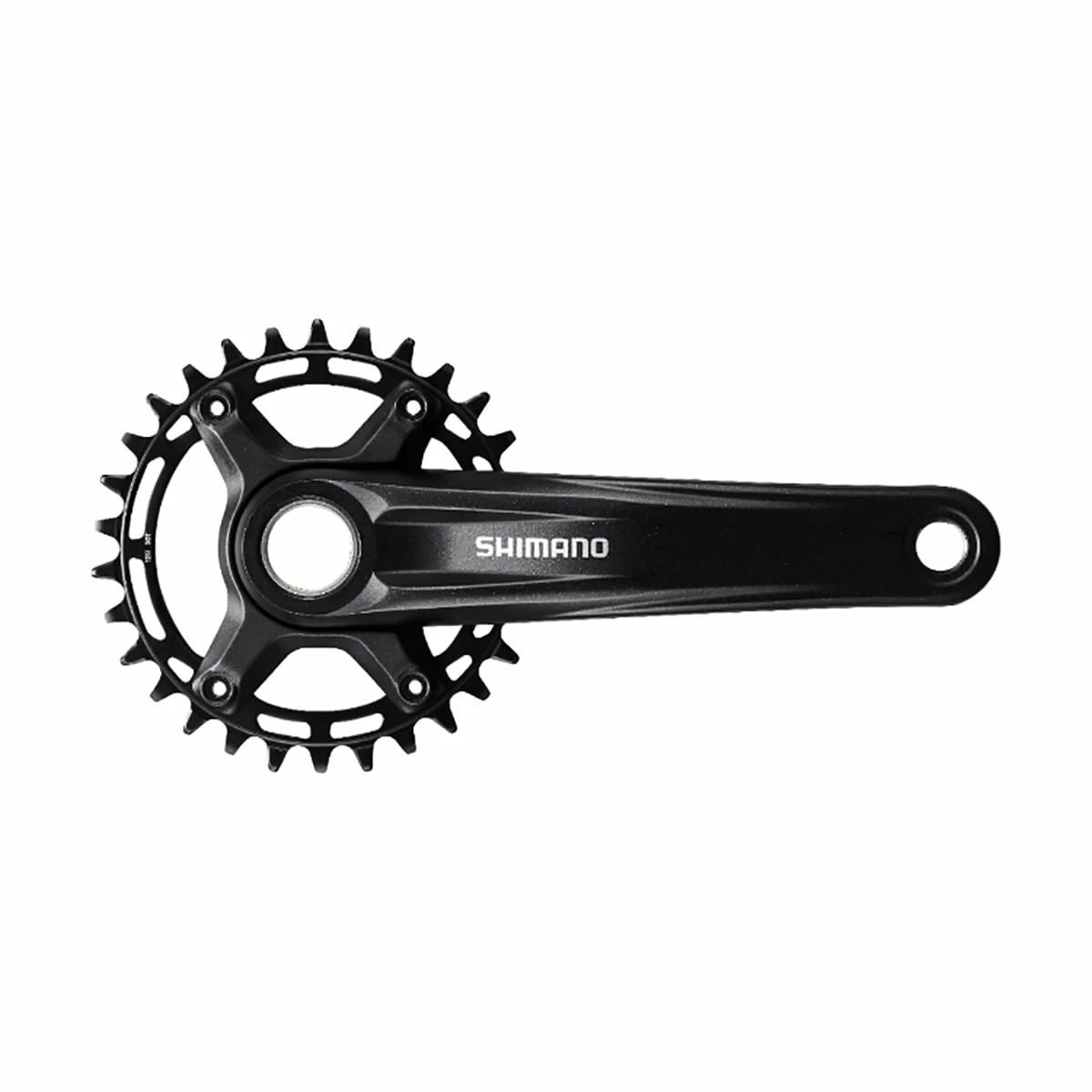

Shimano DEORE FC-MT510-1 Hollowtech II MTB Crankset 1 X 12-speed

The SHIMANO DEORE FC-MT510-1 MTB-crankset provides a reliable chainring setup with excellent chain guiding for 1 x 12-speed drivetrains. These two-piece cranks offer a chainring with either 30 or 32 teeth and a chainline of 52 mm, which is compatible with both 135/142 mm frame locknut dimensions and 148 mm frame locknut dimensions (BOOST).

Details:
• 1 x 12-speed crankset with integrated axle (Hollowtech II)
• Two-piece crankset increases the stiffness of the chainset with low weight and ensures efficient pedal force transference
• DYNAMIC CHAIN ENGAGEMENT+ helps the chain run more smoothly and securely

Specs:
• Intended use: MTB
• Series: DEORE
• Model: FC-MT510-1
• Type: Hollowtech II
• Gear steps front: singlespeed
• Gear steps rear: 12-speed
• Gear ratio: 30- 32- or 34-tooth chainring
• Bolt circle: 96 mm (4-hole, asymmetric)
• Chainline: 52 mm (for 135/142 mm locknut dimensions (non-BOOST) and 148 mm for locknut dimensions for BOOST)
• Q factor: 177 mm
• Compatible chains: SHIMANO 12-speed HG+

Available in the following versions:
• 170 mm crank arm length, 30-tooth chainring
• 170 mm crank arm length, 32-tooth chainring
• 170 mm crank arm length, 34-tooth chainring
• 175 mm crank arm length, 30-tooth chainring
• 175 mm crank arm length, 32-tooth chainring
• 175 mm crank arm length, 34-tooth chainring
Please indicate your choice.

In the box:
• 1 SHIMANO DEORE FC-MT510-1 Crank 1 x 12-speed
Note: WITHOUT bottom bracket!

Optional bearing cups:
• BSA: SM-BB52 (product code: 2058694)
• PressFit: BB-MT500 (product code: 2234036)
