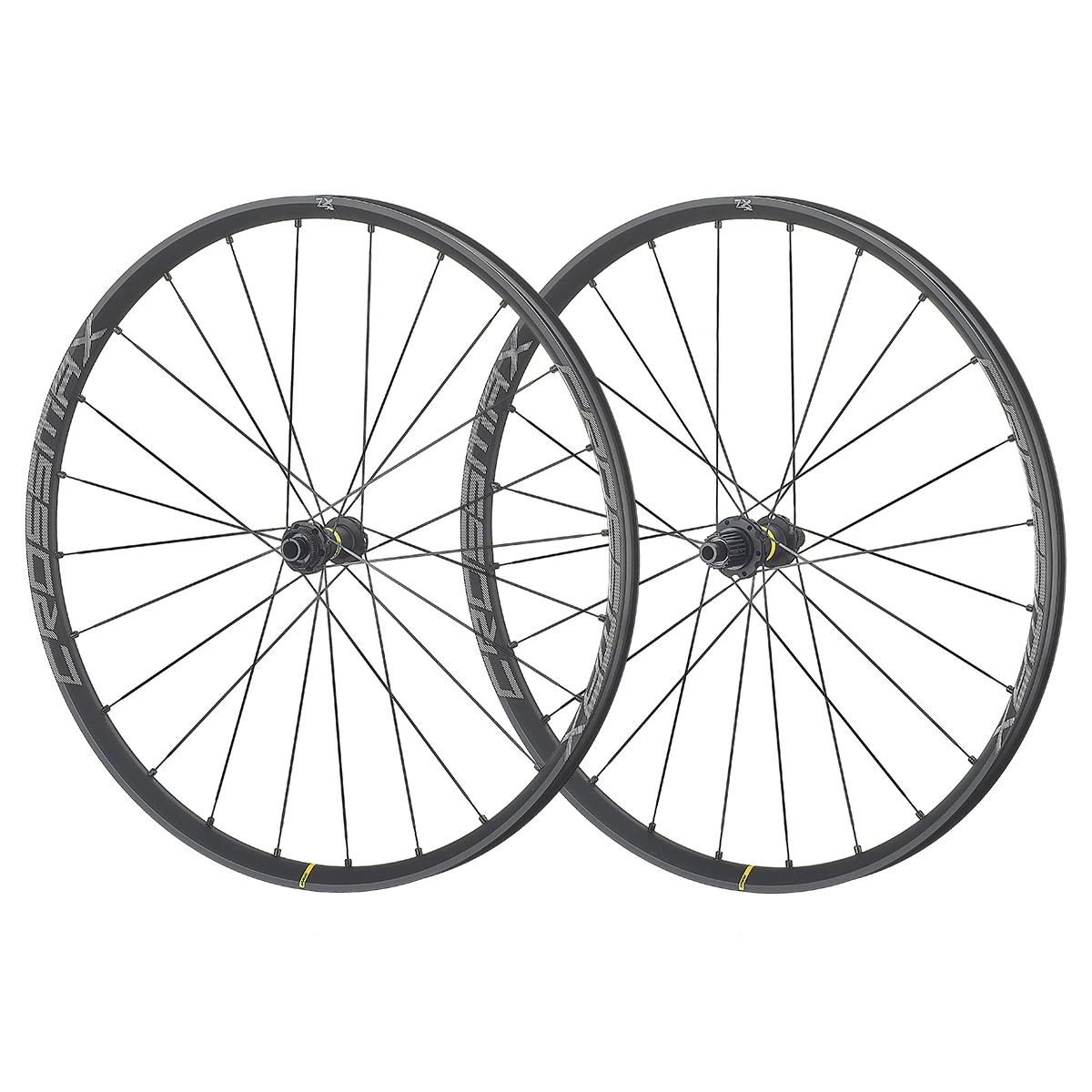

Mavic Crossmax XL Disc BOOST MTB Wheelset 29″, SHIMANO MICRO SPLINE, Centerlock

Trail riding is all about adventure, thrills and fun, as well as exploring new areas and flowing descents.
To get the most out of every ride, you need to have confidence in your equipment. This is especially true when it comes to wheels, since they play a decisive role in the overall mountain bike system. That’s where the Mavic Crossmax XL system wheelset comes in. It is one of the most powerful aluminium wheelsets from the French wheel specialist’s high-quality MTB range.

The robust Maxtal aluminium rims feature Mavic Fore technology and thus fully sealed rim beds that no longer require rim tape. This saves weight and eliminates the need for tubeless rim tape to set up tubeless tyres. The impressive inner rim width of 30 mm also optimally supports the performance of modern trail tyres. In addition, the rim profile has a robust triangular shape that has been specially developed to better absorb shocks from the trail. Finally, Mavic Black Shield technology gives the rims a subtle matt finish that increases their resistance to scratches and abrasion.

With their 24 double-cross straight-pull spokes, the Crossmax XL wheels hit the sweet spot between lateral stiffness and vertical compliance just perfectly. The modern Infinity hub platform features a stiff and lightweight construction that is equipped with the proven and smooth-running Mavic QRM Auto bearing and the robust Instant Drive 360 freewheel system for high durability, minimal friction losses and maximum propulsion.

Top technologies:
• UST tubeless technology: The Mavic standard for tubeless tyres not only improves traction, comfort and rolling resistance, but also reduces the risk of tyre defects.
• SUP (Soudé Usiné Process): Particularly stable, arc-welded rim joint where the weld of the rim joint is perfectly flat milled for a seamless, smooth transition to achieve balanced rotation without brake vibrations.
• Fore tapeless tubeless technology: With Mavic Fore Technology, the spokes are connected directly to the lower rim bridge with a special screw nipple in an incorporated threaded receptacle to increase the resistance of the rim. The closed rim bed remains intact as part of the tubeless system. This makes it easy to change spokes and saves the extra weight of the rim tape.
• Black Shield Treatment: A special rim sealant on Mavic’s MTB wheels with a double coating in a matt finish increases resistance to stone chips and scratches.
• QRM Auto (Qualité de Roulements Mavic Auto): Smooth-running, double-sealed and maintenance-free industrial bearings with high dimensional accuracy and self-adjusting bearing preload.
• ID 360 Instant Drive: A lightweight and low-friction Dual Ratchet freewheel system with a fast 9° engagement angle, for explosive propulsion and reliable power transmission.

Technical details:
• Rim material: Maxtal aluminium
• Wheel size: 29″
• UST tubeless ready
• Fore tapeless tubeless technology
• Asymmetric rim profile
• Rim seam: SUP (welded)
• Rim width: approx. 35 mm
• Rim depth: approx. 21 mm
• ETRTO: 30 – 622
• For Presta valve (Ø 6.5 mm)

• Spokes: straightpull, aero profile, double butted
• Spoke material: steel
• Number of spokes front wheel: 24 pcs
• Number of spokes rear wheel: 24 pcs
• Spoke pattern front wheel: 2-cross (contactless)
• Spoke pattern rear wheel: 2-cross (contactless)
• Nipples: Fore aluminium nipples

• Hub material: aluminium hub body, aluminium axle
• Brake disc mount: Centerlock
• Freewheel: robust Instant Drive 360 freewheel system (toothed disc system)
• Compatibility: SHIMANO 12-speed MICRO SPLINE MTB cassettes (& SHIMANO 11-speed WIDE FLANGE MICRO SPLINE MTB cassettes)
• Front wheel bearing unit: self-adjusting, sealed cartridge bearings (QRM Auto)
• Rear wheel bearing unit: self-adjusting, sealed cartridge bearings (QRM Auto)
• Front axle: 15 x 110 mm (thru axle, BOOST)
• Rear axle: 12 x 148 mm (thru axle, BOOST)

• Weight: approx. 1,930 g (set), approx. 900 g (front), approx. 1.030 g (rear)
• Recommended tyre width: 2.35″-3.00″ (60-76 mm)
• Recommended max. system weight: 120 kg (cyclist, bike, gear and luggage)
• Intended use – ASTM category 4: for use in rough terrain and jumps up to 122 cm

In the box:

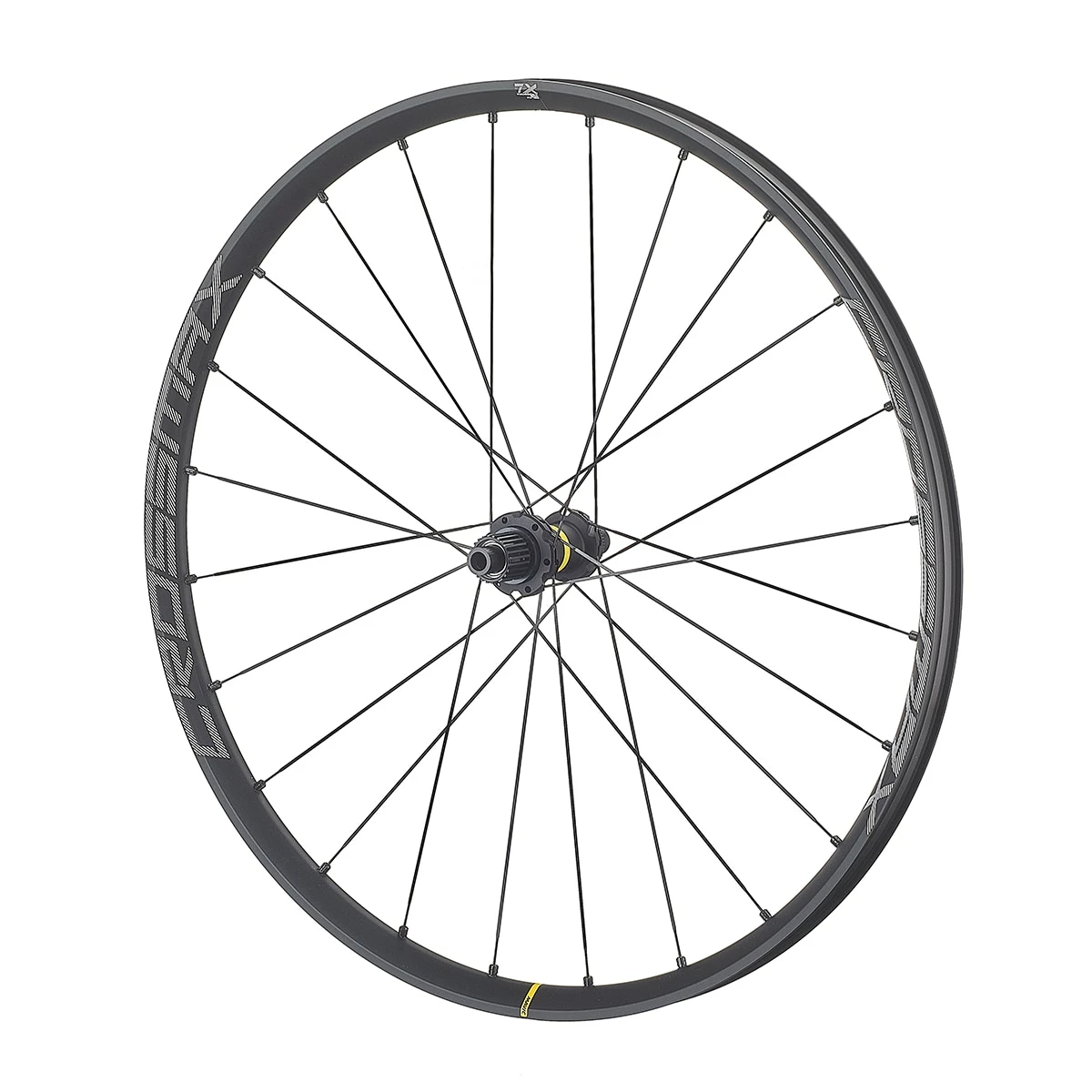

• 1 x Mavic Crossmax XL Disc BOOST MTB rear wheel 29″, SHIMANO MICRO SPLINE, Centerlock

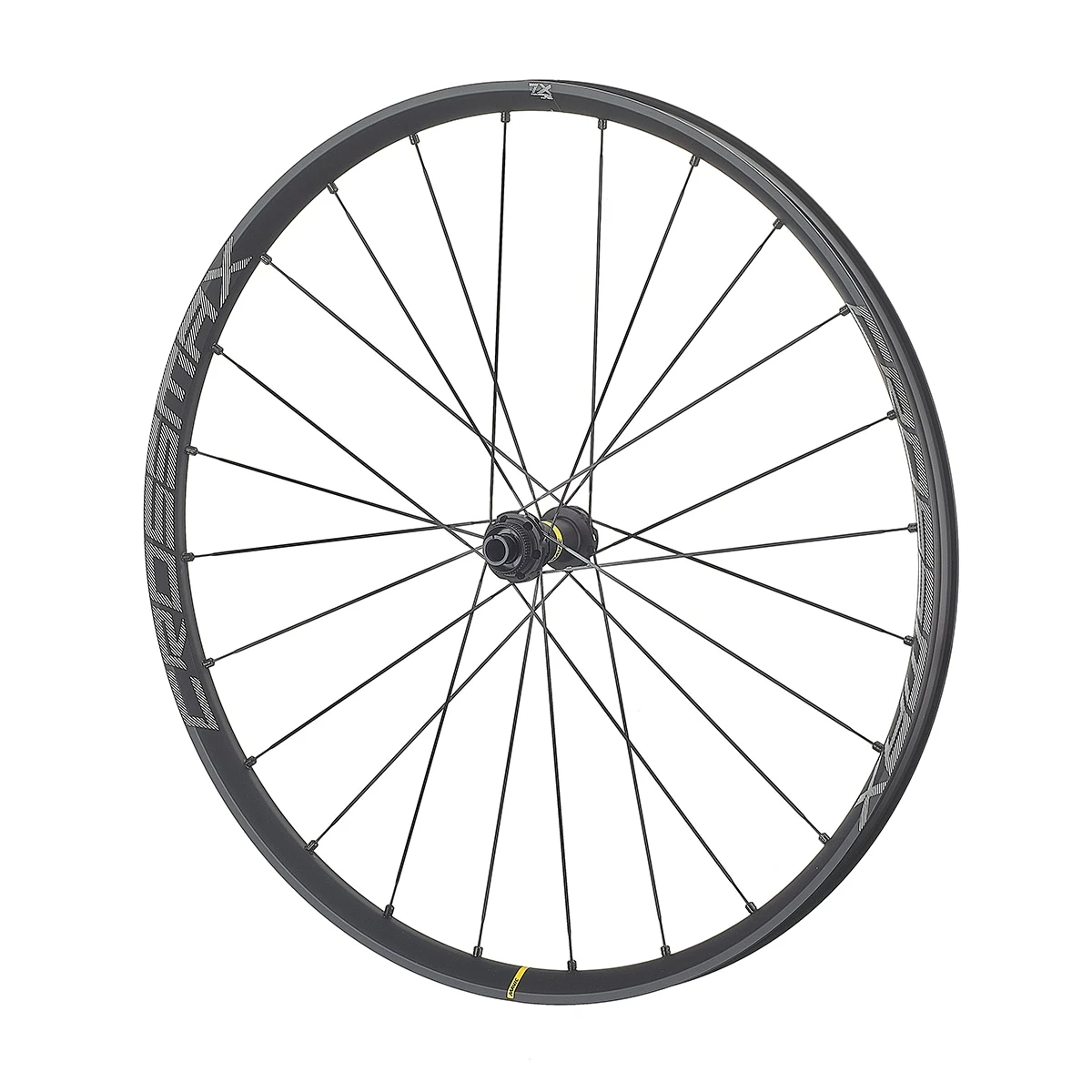

• 1 x Mavic Crossmax XL Disc BOOST MTB front wheel 29″, Centerlock
• 2 x Mavic UST valves

Attention:
Mavic UST wheels may also be used with inner tubes in the standard version.
Please make sure to fill the tyre with sufficient sealant before using the Mavic UST wheels tubeless!
