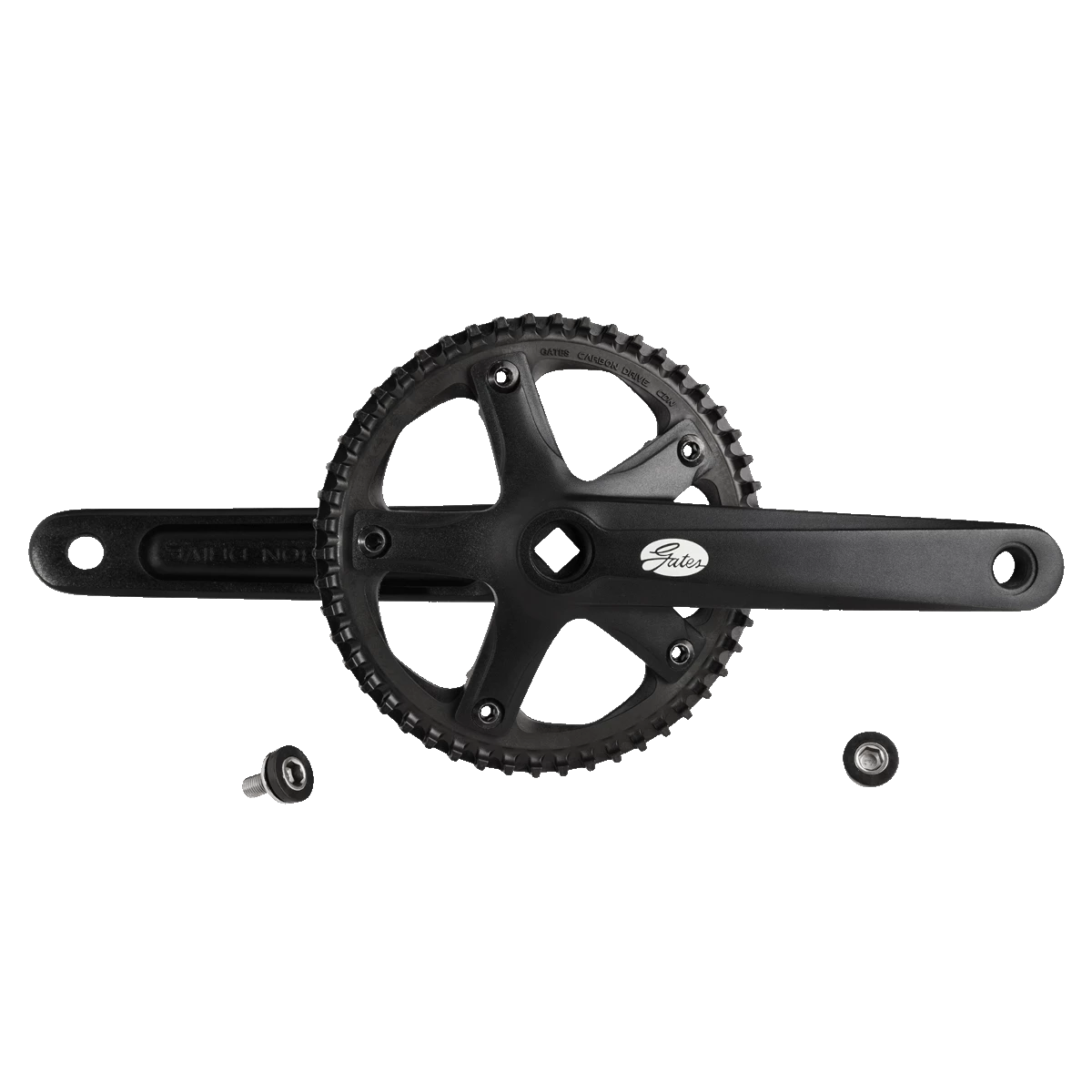

Gates Carbon Drive CDN S150 Crankset With Pulley 50 T

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. With the CDN S150 crank, Gates offers a plug-in solution, allowing for easier installation and high reliability of belt drives with 50 teeth.

This model serves as an inexpensive entry into Gates technology. The drive combination was specially developed for use on city and everyday bikes that are ridden in all types of weather and are often standing outside. Benefit from the quiet, low-maintenance drive for bikes in urban everyday life where reliability is particularly important.

Details:
• CDN design with good durability
• Intended use: city and urban bikes, as well as e-bikes with front- or mid-drive motor
• Suitable for urban settings and paved roads
• Open tooth profile (mudports) for unimpeded functionality
• Integrated CenterTrack belt guide
• Sprocket made of heavy-duty high-tech plastic
• Cold forged aluminium crank with anodised finish

Technical details:
• System Gates CDN
• For a shell width of: 68 mm (BSA)
• Crank arm length: 170 mm
• Belt line: depending on the system
• Number of teeth: 50
• Tooth pitch: 11 mm
• BB standard: square JIS (e.g. SHIMANO BB-UN55 (product code: 1768615), Attention: the required axle length depends on the system)
• Sprocket mount 5-bolt
• Bolt circle: Ø 130 mm (130 BCD)
• Material: 6061 aluminium, plastic
• Recommended belt: CDN belt (product code: 2289229)

In the box:
• 1 Gates CDN S150 crankset
• 1 Gates CDN sprocket 50 teeth, pre-installed
• 2 crank mounting bolts

WITHOUT bottom bracket!

Attention:
The Gates CDN sprockets are NOT approved for MTB riding or touring (increased wear)! Also NOT for e-bikes with mid-mounted motors.
