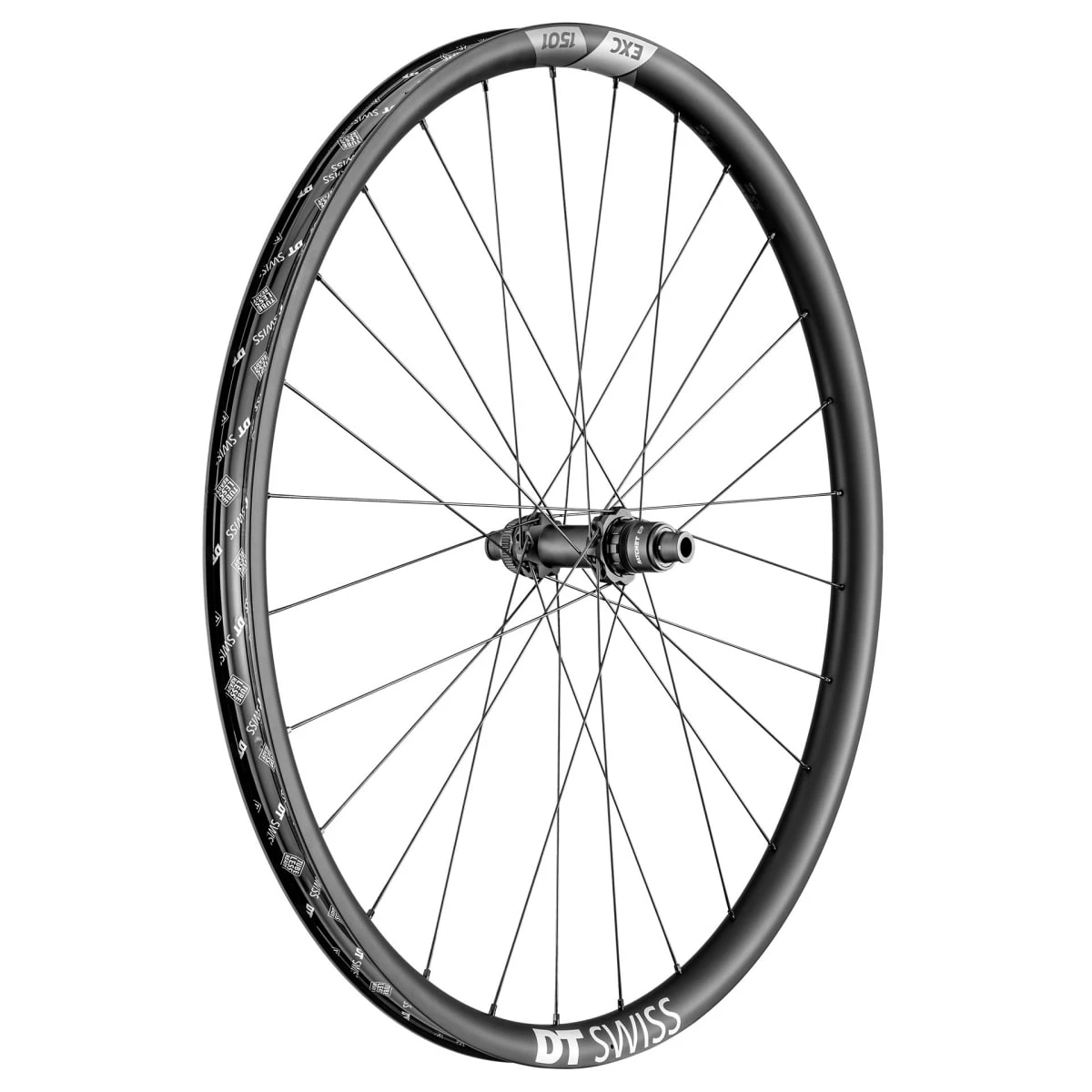

Dt-swiss EXC 1501 Spline® ONE 30 Carbon SRAM XD™ / SHIMANO MICRO SPLINE Disc CL BOOST 29″ MTB Rear Wheel

A robust carbon rim combined with the outstanding DT Swiss 240 Spline® hub – with the EXC 1501 Spline® ONE 30 rear wheel, breakneck speeds are easily possible even on the toughest Enduro tracks!

The EXC 1501 Spline® ONE combines all the features that a modern Enduro rider wants in a classy and high-performance system wheel.
The wide carbon rim with a 30 mm inner width provides the precision you need to handle even the most demanding line. Plus, the reliable 240 Spline® rear hub with its robust ratchet EXP freewheel mechanism and high-quality industrial bearings ensures that your pedalling power is always put to the test. The performance-oriented, quality components are held together by high-performance and weight-optimised competition® race straight-pull spokes.

Technologies:

• RATCHET EXP SYSTEM:
Thanks to the integration of star ratchet and thread ring, this is currently the lightest ratchet freewheel system from DT Swiss. The start ratchets for the Ratchet EXP system have 36 or 54 teeth for a particularly small engagement angle. The system stands out for high reliability thanks to the simultaneous meshing of the teeth, which leads to significantly lower point loads. The no-tool concept allows easy maintenance and tool-free conversion to common axle and freehub body standards.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Wheel size: 29″
• Rim material: carbon
• Rim type: clincher
• Brake type: disc brake
• Rim depth: 25 mm
• Rim width: 36 mm
• Inner rim width: 30 mm
• ETRTO: 30 – 622
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 1.9″ – 3.2″

Spokes and nipples:
• Spoke type: DT Swiss competition® race straightpull
• Number of spokes: 28 pieces
• Lacing: 3-cross
• Nipples: DT Swiss ProLock® Squorx ProHead aluminium

Rear hub:
• 240 Spline®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freewheel and aluminium hub body
• CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. prod. code: 2283716)
• Ratchet EXP freewheel system, 36T (10° degree engagement)
• Hub width: 12 x 148 mm (BOOST thru axle)

Sprocket compatibility (with pre-mounted XD freewheel):
• SRAM XD™ 11-/12-speed
Sprocket compatibility (with included MICRO SPLINE freewheel):
• SHIMANO 12-speed MICRO SPLINE MTB cassettes (& SHIMANO 11-speed WIDE FLANGE MICRO SPLINE MTB cassettes)

Weight:
• Weight: approx. 891 g
• ASTM classification: 4 (for extremely rough, blocked terrain with jumps/drops of up to 121 cm)
• Max. system weight: 130 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss EXC 1501 Spline® ONE 30 Carbon BOOST rear wheel SRAM XD™
• 1 DT Swiss Tubeless-Ready Tape (rim tape, pre-mounted)
• 1 DT Swiss tubeless valve

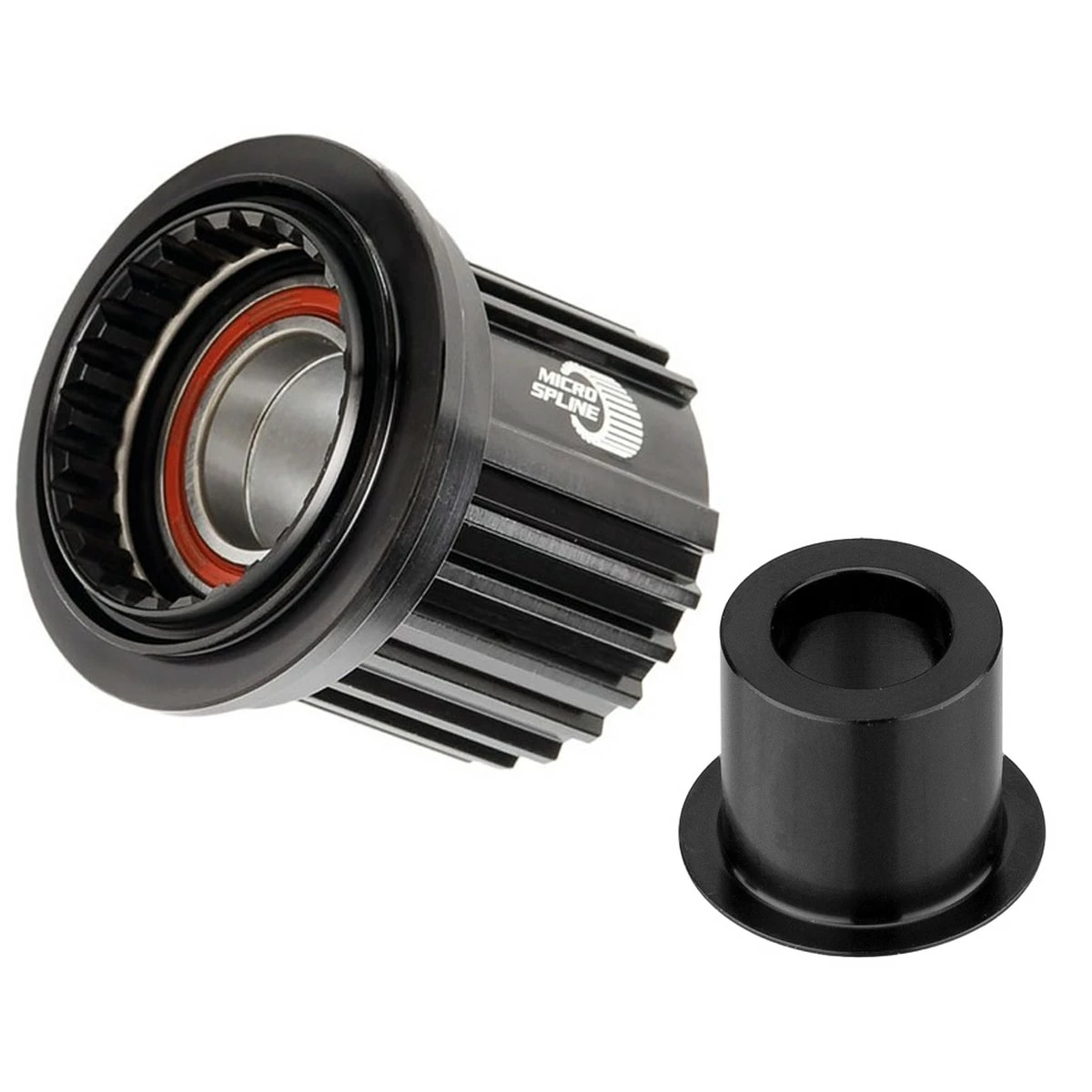

• 1 DT Swiss freewheel body for SHIMANO MICRO SPLINE cassettes

Tip:
The freewheel body can be exchanged without tools. A how-to video from DT Swiss on changing the freehub body can be found here:
https://www.dtswiss.com/de/support/how-to-videos
You can find the DT Swiss special grease you may need under prod. code: 226341701
